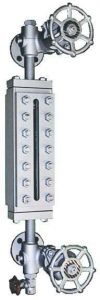

Direct Reading Level Gauges Series BT & BR
Direct Reading Level Gauges Series BT & BR
- For use with any liquid.
- With transparent or reflex glasses.
- All material construction, including carbon steel, stainless steel, special alloys, plastics.
- Suitable for saturated steam up to 210 Bar.
- Rating: ASME Class 150 to 2500 (from PN 6 to PN 420).
- Options: non frosting blocks, heating, illuminator (also explosion proof) etc.
Bicolour Level Gauges Series BC
Bicolour Level Gauges Series BC
- Designed for water/steam measurement.
- Red signal for steam and green signal for water.
- Colours are typical (can also be switched).
- Materials: stainless steel and carbon steel.
- Suitable for saturated steam up to 225 bar (3000 psi).
- Options: remote transmission by means of mirrors, optic fiber, closed circuit television, illuminator (explosion-proof on request), etc.

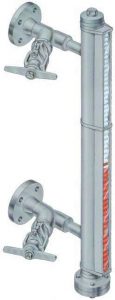

Magnetic Level Gauges Series MAG
Magnetic Level Gauges Series MAG
- Suitable for any fluid, up to most severe operating condition.
- Able to indicate the separation level between two liquids.
- Materials: stainless steel, special alloys, titanium, plastics.
- Rating: ASME Class 150 to 2500 (from PN 10 to PN 420).
- Also, with immersed float or ground-floor reading.
- Optional: anti-frosting blocks, heating, magnetic switches, continuous remote signal transmission (explosion proof on request), etc.

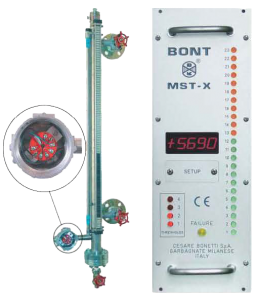

Remote Level Transmitter Series MST
Remote Level Transmitter Series MST
- Can be used alone or connected to MAG series magnetic level gauges.
- Continuous analog signal with two wire connection (4/20 mA).
- On request digital protocol (HART, Profibus, etc.)
- Long distance question/replies with SMS/GPRS.
- Standard resolution 7.5 mm, lower on request.
- Up to 6000 mm useful measuring range.
- Explosions proof available on request.

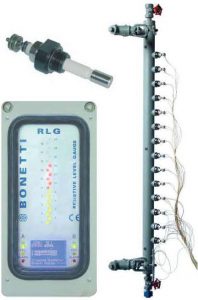

Conductive Probe Level Indicator Series RLG
Conductive Probe Level Indicator Series RLG
- For water/steam measurement up to saturated steam (225 bar).
- From 10 up to 32 probes.
- Redundant circuits and self-diagnostic equipped for maximum reliability.
- Bicolor signal LEDS and graphic display.
- Analogic signal (4/20 mA) and digital signal (HART, Profibus, etc.)
- Configurable free exchange contacts.
