Cast Steel Gate, Globe, Check Valves
Bolted Bonnet Design
Cast Steel Gate, Globe, Check Valves
Bolted Bonnet Design
- Size: 2” through 24”
- Design compliance to: API600, BS1873, BS1868, IBR
- Pressure Rating ASME: CL 150, 300, 600, PN 20, 50, 100
- Working Temperature: -196°C up to +550°C & over
- Materials: Carbon Steel, Stainless Steel, Alloy Steel, Special Alloys on Request
- Connections: Flanged RF, Butt Weld End
Ball Valves Series WVE
Ball Valves Series WVE
- Floating or trunnion type.
- Design: 2 or 3 pieces, top entry or fully welded.
- Available also in special execution and for sub sea application.
- API 6A and 6D, Fire-safe certified.
- Rating: ASME Class 150 to 2500; from PN 16 to PN 100; API 2000 to 10000.
- Size: from 1/4” through 48” e over on request.
Multilayer Seated Ball Valves Series HTB & HTL
Multilayer Seated Ball Valves Series HTB & HTL
- Floating (HTB) or trunnion (HTL) design.
- Bubble- tight (zero leakage) at lowest and highest temperatures.
- Special multilayer seats suitable from -196°C up to +550°C and over Fire-safe and TA-Luft approved.
- Materials: Carbon Steel, Stainless Steel, Special Alloys, Titanium, etc.
- Rating: ASME Class 150 up to 2500.
- Size: from 1/4” through 48” and over.
Forged Steel Gate Valves, Globe Valves & Check Valves Bolted Bonnet Design
Forged Steel Gate Valves, Globe Valves & Check Valves Bolted Bonnet Design
- Sizes: 1/2” through 2”
- Design compliance: FO – API 602, BS 5153, ISO 15761, IBR
- Pressure Rating: ASME class 800 & PN 130
- Working Temperature: -196°C up to 550°C
- Material: Forged Carbon Steel, Stainless Steel, Alloy Steel, Special Alloys on request.
- Connections: Socket weld, Butt weld, Flanged on request.
Piston Valves Series BV
Piston Valves Series BV
- Bubble-tight (zero leakage) at lowest and highest temperatures.
- No fugitive emissions (TA-Luft and fire-safe certified).
- Approved for the handling of liquefied gasses on railway tanks.
- Available with flow regulating trim.
- Special multi-layer seats suitable from -196°C up to +550°C and over.
- Rating: ASME Class 150/600 (PN16 / PN63) and API 800.
- Size: 1/2” through 8” (from PN15 up to PN 200).
Forged “Y” Pattern Valves Series WBY
Forged “Y” Pattern Valves Series WBY
- Less fluid turbulence and higher flow coefficient.
- Stop, or piston check, or flow control, or stop-check.
- Available in special designs and materials for any fluid.
- Available with electric or pneumatic actuator on request.
- ASME Class: 600, 900, 1700, 2700, 4500 and special Classes.
- Size: 1/4” through 4”.
Forged “Y” Pattern Valves Series BLY
Forged “Y” Pattern Valves Series BLY
- Bonnetless-Rising, non-rotating stem.
- Stop, or piston check, or flow control, or stop check.
- Special anti-cavitation trim on request.
- Available in special designs and materials for any fluid.
- Available with electric or pneumatic actuator on request.
- ASME Class: 1700, 2700, 4500.
- Size: 1/2” through 3”.
Forged “T” Pattern Valve Series WBT
Forged “T” Pattern Valve Series WBT
- Welded Bonnet suitable for very high pressure & severe application.
- Available in special designs and materials for any fluid
- Available with electric or pneumatic actuator on request.
- ASME class: 600, 800, 900, 1500, 1700, 2700, 4500 and special classes.
- Sizes: 1/2” through 2”
- Connections: Socket Weld, Butt Weld End, Flanged End on request.

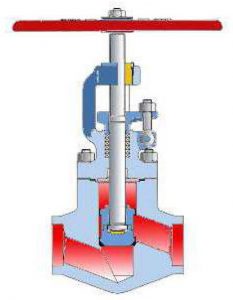

Forged “T” Pattern Valve Series BBT
Forged “T” Pattern Valve Series BBT
- Bolted Bonnet design suitable for very high pressure & severe application.
- Available in special designs and materials for any fluid.
- Available with electric or pneumatic actuator on request.
- ASME class: 600, 800, 900, 1500, 1700, 2700, 4500 and special classes.
- Sizes: 1/2″ through 2″
- Connections: Socket Weld, Butt Weld End, Flanged End on request.
High Pressure Piston Lift Check Valve
High Pressure Piston Lift Check Valve
- Available in welded bonnet, bonnet less, bolted bonnet, pr. seal bonnet design.
- Y pattern: Forged up to 4″
- Y & T pattern: Cast up to 26″
- Sizes: 1/2″ through 26″
- ASME class: 600, 800, 900, 1500, 1700, 2500, 4500 and interpolated special classes.
- Connections: Socket Weld, Butt Weld End, Flanged End on request
- Operations: Manual or Actuated.

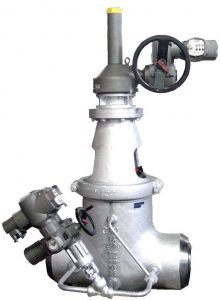

High Pressure Gate Valves Series CMI-S
High Pressure Gate Valves Series CMI-S
- Pressure Seal.
- Split wedge or Parallel slide.
- Hand operated or actuated (electrically or pneumatically).
- Bypass and/or equalizing pipe on request.
- ASME Class: 600, 900, 1500, 2500, 4500 and special classes.
- Size: 2″ through 28″.

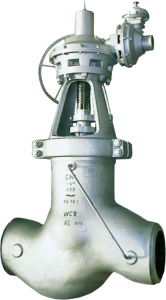

High Pressure Globe Valves Series CMI-G
High Pressure Globe Valves Series CMI-G
- Pressure Seal.
- Construction: “T” type, “Y” type, angle, “Elbow down”.
- Stop, throttling, stop check, piston check.
- Hand operated or actuated (electrically or pneumatically).
- ASME Class: 600, 900, 1500, 2500, 4500 and special Classes.
- Size: 4″ through 24″.
High Pressure Check Valves Series CMI-C
High Pressure Check Valves Series CMI-C
- Vertical seat (perpendicular to flow), higher flow coefficient.
- Pressure seal or bolted bonnet.
- Swing or tilting disk.
- Available pneumatically actuated (for turbine bleeding lines).
- ASME Class: 150, 300, 600, 900, 1500, 2500, 4500.
- Size: 2″ through 32″.
Stop Valves Bellow Sealed
Stop Valves Bellow Sealed
- Bolted Bonnet Design.
- Equipped with pneumatic, hydraulic or electric actuator.
- Sizes: 1/2″ trough 10″ (DN15-DN250)
- ASME class: 150-300 / PN-16-25-40
- Working Temperature: -10°C up to 400°C
- Connections: Flanged, Buttweld
- Materials: Cast Iron, Nodular Cast Iron, Cast Carbon & Stainless Steel.

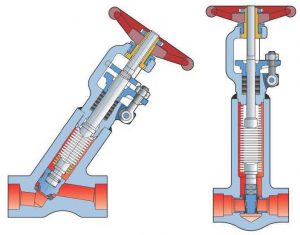

Forged Steel Globe Valves & Gate Valves
Forged Steel Globe Valves & Gate Valves
- Bellow Sealed, Stop Valves.
- Seal Welded Bonnet.
- OS & Y rising non rotating stem.
- Size: 1/2″ through 2″.
- ASME class: 800, 1500, 2500.
- Working Temperature: -196°C up to 450°C.
- Connections: Socket Weld, Butt Weld End Screwed ends NPT or BSP.
- Materials: Forged Carbon Steel, Alloy Steel, Stainless Steel.
Steam & Condensate Manifolds
Steam & Condensate Manifolds
- Forged body with piston type sealing mechanism.
- Patented reinforced seal rings.
- Tight shut off, fire safe, Ta Luft qualified.
- Sizes: 4, 6, 8, 10, 12 or more connecting stations on request.
- ASME class: 150, 300, 800
- Working Temperature: -46°C up to 450°C
- Connections: Threaded, Socket weld
- Materials: Forged Carbon Steel, Alloy Steel.

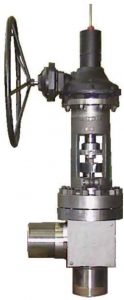

Special Bonetti Valves Series SV
Special BONETTI Valves Series SV
- Custom made valves for severe duty applications.
- Valve type: stop, throttling, check.
- Suitable for urea and fertilizer application, water treatment plants,
hazardous fluids. - Available in various executions and materials, also special alloys.
- On request, available with electric or pneumatic actuator.
- Designed according to unique customer and plant requirements.
Quick Acting Automatic Valves Series AV2 & AV3
Quick Acting Automatic Valves Series AV2 & AV3
- Type two ways (AV2) or three ways (AV3).
- Designed for H.P. preheaters bypass systems.
- Hydraulically self-actuated by the process media.
- Operating speed controlled by an external regulating valve.
- Manual operation with locking device.
- ASME Class 900, 1500, 2500 and special classes.
- Nominal diameters up to 18″ size.
Blowdown Valves & Blowoff Valves Series BLB, PBR & RSS
Blowdown Valves & Blowoff Valves Series BLB, PBR & RSS
- For continuous (BLB) or discontinuous (PBR) or intermittent blow-off.
- Useful for flow control under high differential pressure.
- Needle type (BLB), tandem type with multistage disk (PBR), or ball type (RSS and RSSA).
- Available with actuator.
- ASME Class 600, 800, 900, 1700, 2700, 4500 and special slasses.
- PN 40, 63, 100, 160, 250, 420, 630, 760.
